Bolt Together Box Shoring

Box Section Shoring has been developed for use in sandy soil and has proven to be very successful.

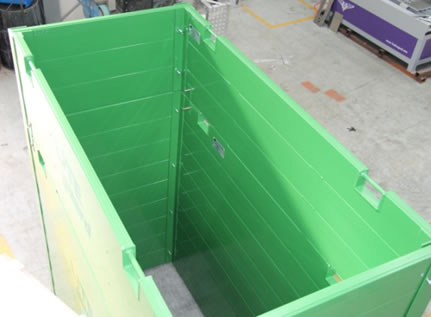

It has four fixed sides, for cemeteries which dig all the graves the same size.

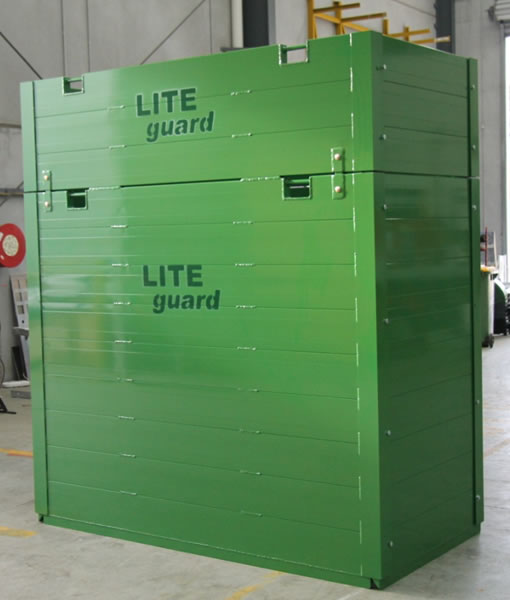

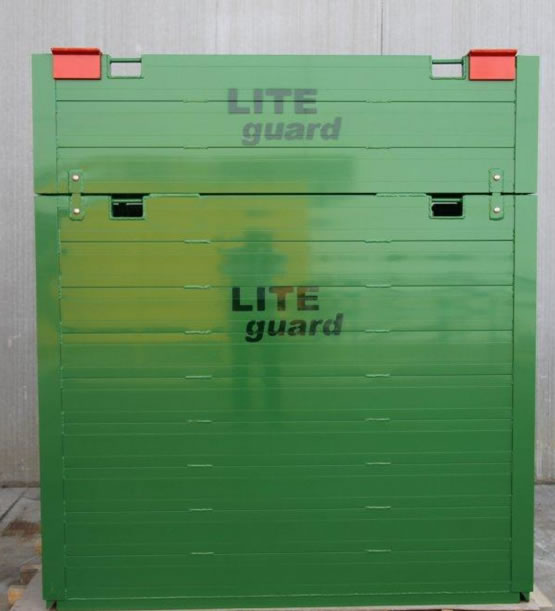

There are lifting lugs in each corner. These are built to 2300mm long x 800mm wide. The base unit’s depth is 1200mm and there is the option of placing a stacking unit on top to create a larger depth of up to 2m. The stacking units come with depths of 400mm, 600mm & 800mm.

Bolt Together Box Shoring for easier freight handling and also for moving around the cemetery

This system can be freighted as a flat pack.
